Description
- Manufactured from high speed steel for increased tool durability.
- Manufactured as per DIN 333 Standards.

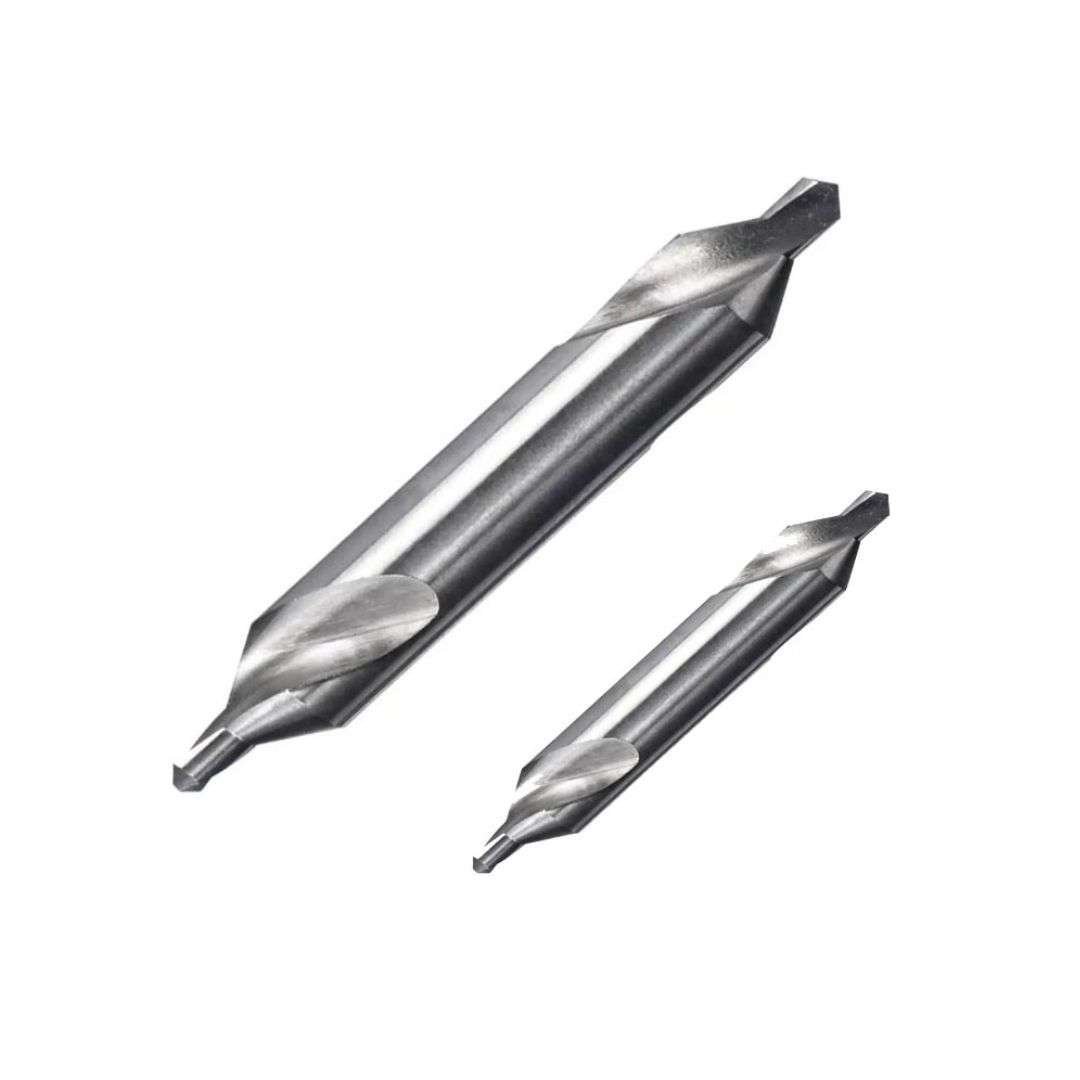

- Center drills have a conical shape with a pilot tip that creates a small, precise indentation in the workpiece.
- The primary purpose of center drills is to create a starting point for the subsequent drilling operation. They help prevent the twist drill from wandering and ensure that the hole is accurately centered.
- Many center drills are double-ended, providing two cutting tips. This feature extends the tool’s life and provides flexibility in case one end becomes dull.
| PLOT DIA (d1) | BODY DIA (d2) | O.A.L. (l1) |
| MM | MM | MM |
| 1 | 3.15 | 31.5 |
| 1.25 | 3.15 | 31.5 |
| 1.6 | 4 | 35.5 |
| 2 | 5 | 40 |
| 2.5 | 6.3 | 45 |
| 3.15 | 8 | 50 |
| 4 | 10 | 56 |
| 5 | 12.5 | 63 |
| 6.3 | 16 | 71 |
| 8 | 20 | 80 |
| 10 | 25 | 100 |
