Description
- Manufactured from high speed steel for increased tool durability.
- Manufactured as per BS328 Standards. 60° inclusive angle

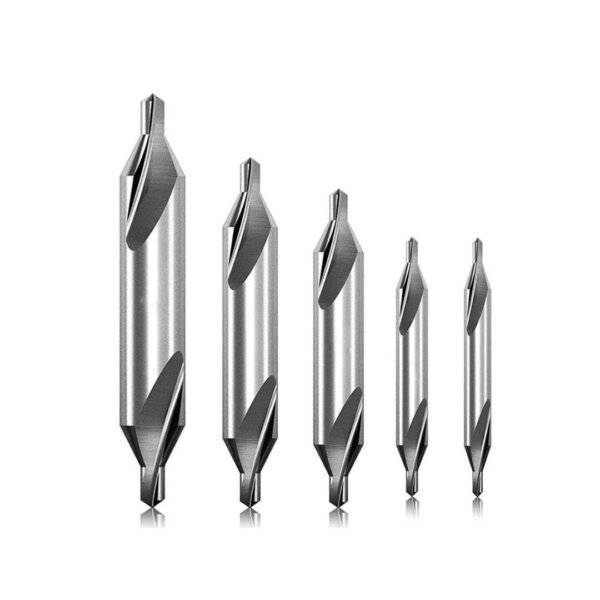

- Center drills have a conical shape with a pilot tip that creates a small, precise indentation in the workpiece.
- The primary purpose of center drills is to create a starting point for the subsequent drilling operation. They help prevent the twist drill from wandering and ensure that the hole is accurately centered.
- Many center drills are double-ended, providing two cutting tips. This feature extends the tool’s life and provides flexibility in case one end becomes dull.
| BS NO. | BODY DIA | PILOT DIA. |
OVERALL LENGTH
|
| BS1 | 1/8” | 3/64” | 1-1/2” |
| BS2 | 3/16” | 1/16” | 1-3/4” |
| BS3 | 1/4” | 3/32” | 2” |
| BS4 | 5/16” | 1/8” | 2-1/4” |
| BS5 | 7/16” | 3/16” | 2-1/2” |
| BS6 | 5/8” | 1/4” | 3” |
| BS7 | 3/4” | 5/16” | 3-1/2” |
