Description

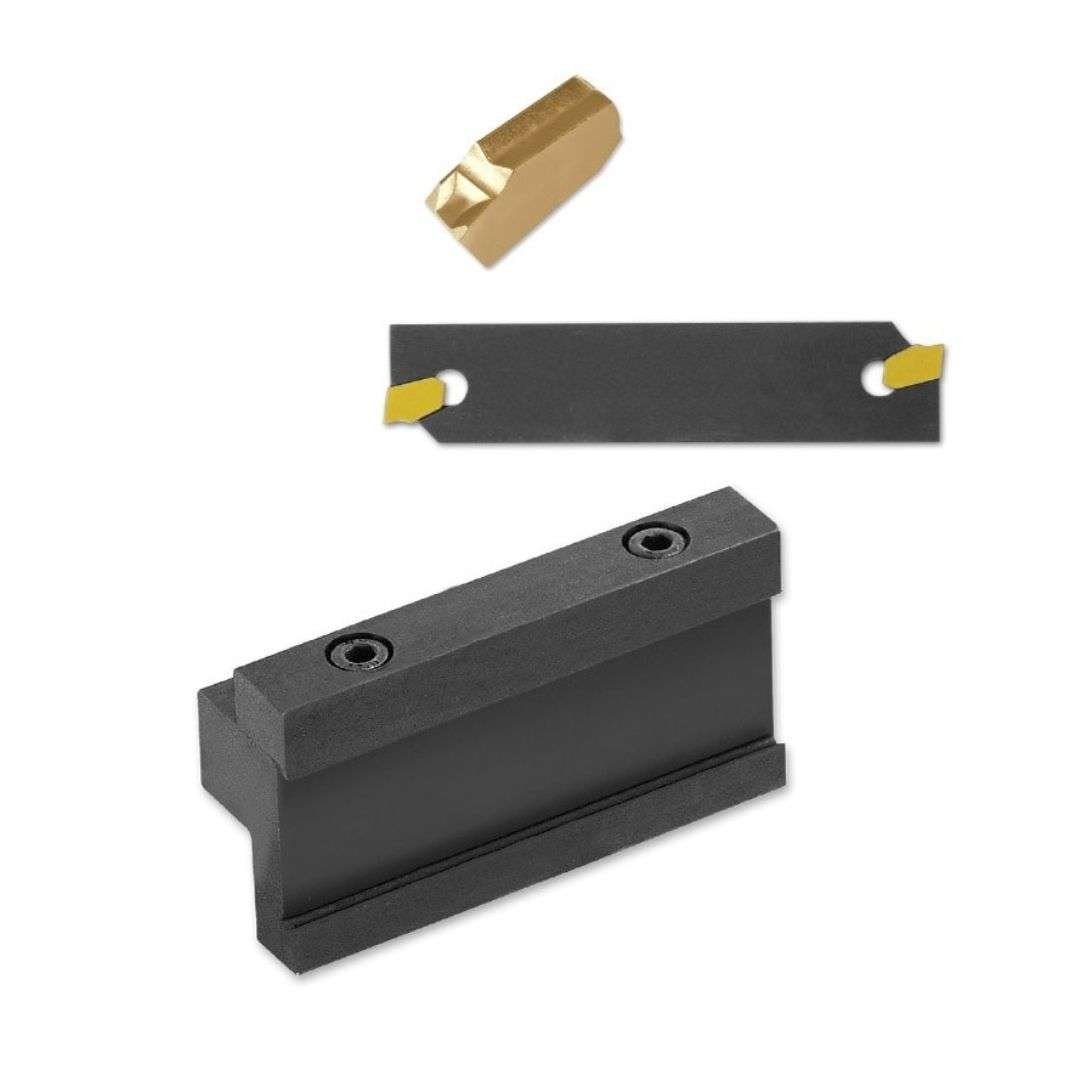

- Parting Off Blocks are manufactured from Hardened Alloy Steel to avoid vibration while in operation.
- Excellent Clamping Force with the help of 3 & more Screws over the clamping Plate.
- Integral flexible clamping Applicable for both right and left hand turning operations
- A Very Suitable tool to be used on almost all lathes.
- Can be used both with HSS Blades & Carbide tipped Indexable Parting baldes.
- Indexable Blades comes without Inserts. Picture is for reference only. Please order Inserts Seperately.
| HOLDER/ WITH BLADE 2 INSERT | ||
| SHANK SIZE | SUITABLE BLADE |
SUITABLE CARBIDE INSERT
|
| Add | Add | Add |
| 8 x 31 x 65 mm | 1.7 x 20 x 90 mm | GTN-2 mm |
| 10 x 31 x 65 mm | 1.7 x 20 x 90 mm | GTN-2 mm |
| 12 x 31 x 65 mm | 1.7 x 20 x 90 mm | GTN-2 mm |
| 14 x 31 x 65 mm | 1.7 x 25 x 110 mm | GTN-2 mm |
| 16 x 38 x 90 mm | 1.7 x 25 x 110 mm | GTN-2 mm |
| 20 x 50 x 110 mm | 2.3 x 32 x 150 mm | GTN-3 mm |
| 25 x 50 x 110 mm | 2.3 x 32 x 150 mm | GTN-3 mm |
