Description

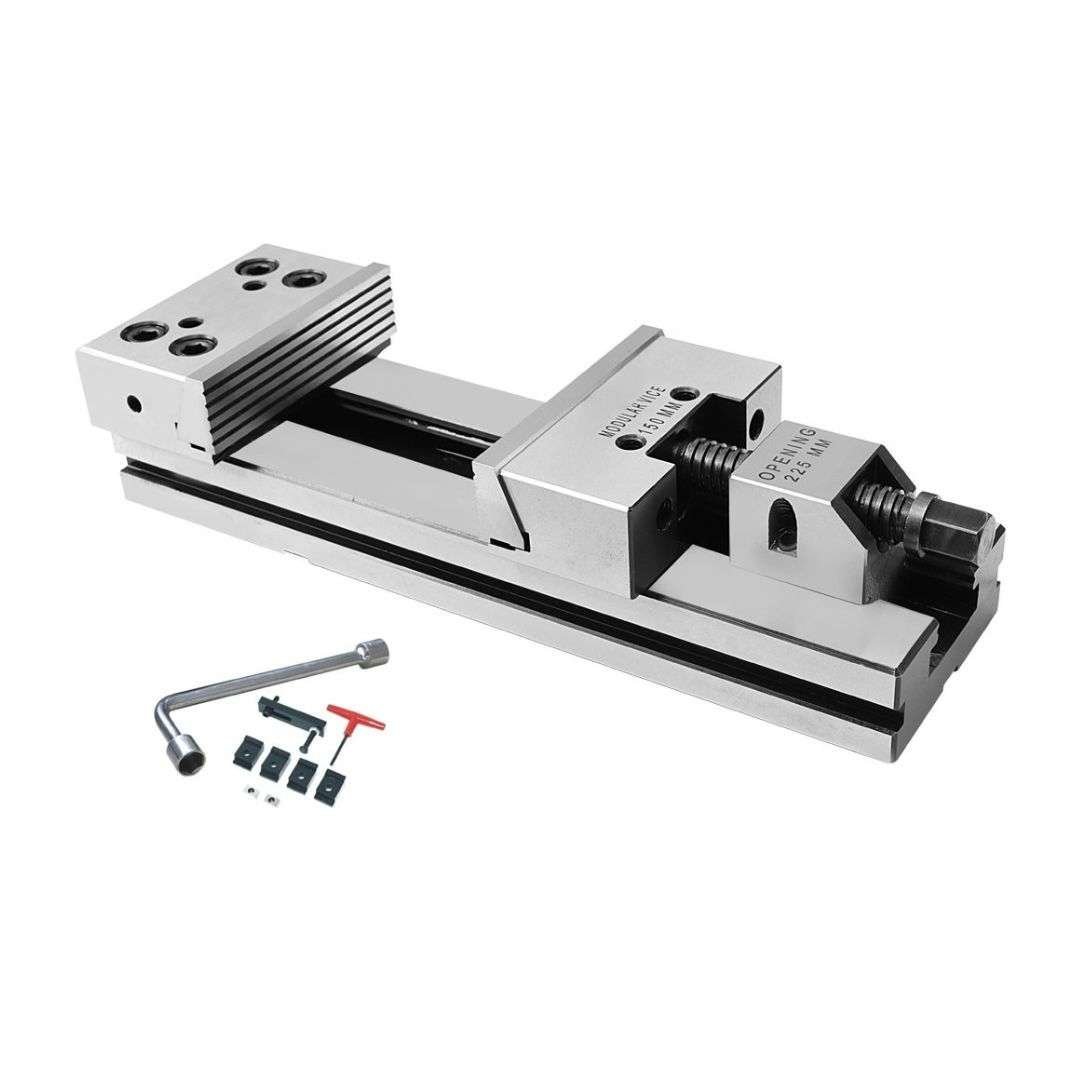

- High Precision High Alloy Steel Vise with Maximum Rigidity with Case Hardening upto 60 ±2 HRC.
- The space saving design and solid construction allow a maximum blocking ratio to total overall dimension of the vise.
- It Features quick Clamping Sliding in the Vise of Base Slide. The Clamping is secured with the Main Screw and allows 4 further Interchangeable clamping system like Hydraulic, pneumatic, Manual Hydraulic.
- Both jaws bodies are built in one solid piece (no slides or key-nuts) in order to guarantee higher rigidity & no bending.
- Both Jaw plates are manufactured with a pull down angle. This ensure, during the clamping operation, a downward run of the workpiece against the vise base (by dragging) and thus a precise and safety clamping.
| JAW WIDTH | JAW OPENING | JAW DEPTH | OAL | HEIGHT X WIDTH | TENON SLOT SIZE |
APPROX WEIGHT
|
| A (MM) | B (MM) | C (MM) | D (MM) | E X F (MM) | . | In Kgs |
| 100 | 130 | 40 | 325 | 70 x 102 | 16 | 9 |
| 125 | 175 | 40 | 375 | 90 x125 | 16 | 17 |
| 150 | 225 | 50 | 450 | 98 x 150 | 16 | 27 |
| 150 | 300 | 50 | 525 | 98 x 150 | 16 | 30 |
| 200 | 300 | 60 | 555 | 118 x 203 | 16 | 48 |
| 200 | 400 | 60 | 655 | 118 x 203 | 16 | 54 |
