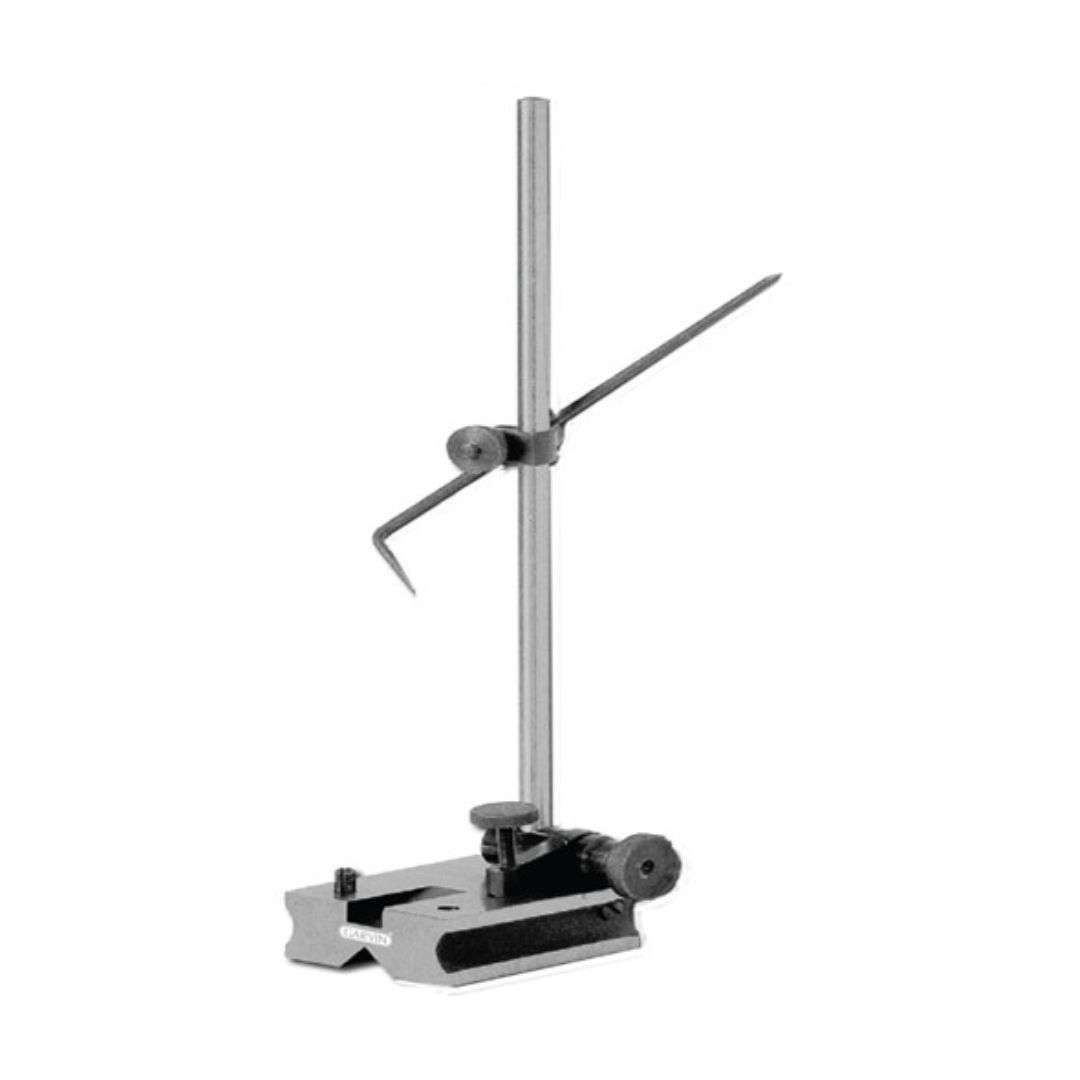

Description
- Fully hardened & ground base, which serves as an accurate reference surface.
- Adjustable spindle with scriber that can be rigidly secured at any position on the spindle.
- Can be used on flat or round surfaces.
- Vee groove in the base allows the gauge to be used conveniently on curved or cylindrical surfaces.
- Having fine adjustment & fine scriber point.
| Base Dimension | Length Of Spindle | Diameter Of Spindle | |||
| Inch | MM | Inch | MM | Inch | MM |
| 3-1/4×2-1/2×1 | 82x63x25 | 9 | 225 | 3/8 | 9.5 |
| 3-1/4×2-1/2×1 | 82x63x25 | 12 | 300 | 3/8 | 9.5 |
| 2-3/16×1-5/8×3/4 | 55x40x20 | 4 & 7 | 100 & 175 | 1/4 | 6.25 |
| 3-1/4×2-1/2×1 | 82x63x25 | 9 & 12 | 225 & 300 | 3/8 | 9.5 |
| 4×3-1/2×1-1/8 | 100x90x30 | 12 & 18 | 300 & 450 | 3/8 | 9.5 |
